Diotec Semiconductor DI280N10TL N-Channel Power MOSFET

Diotec Semiconductor DI280N10TL N-Channel Power MOSFET is a 100V drain-source voltage (VDSS) N-channel power MOSFET in a compact, space-saving HSOF-8 package. It comes with a 280A continuous drain current (ID) and 375W power dissipation (Ptot). The device offers a low drain-source on-state resistance of 1.6mΩ typical (VGS=10V ID=50A). The Diotec Semiconductor DI280N10TL is ideal for DC/DC converters, power supplies, DC drives, and power tool applications.

Features

  • Advanced Trench technology
  • Low on-state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant with RoHS (exempt 7a)
  • REACH, conflict minerals

Applications

  • DC/DC converters
  • Power supplies
  • DC drives
  • Power tools

Videos

{"PlayerType":"Video","BrightcoveId":"6318759081112"}

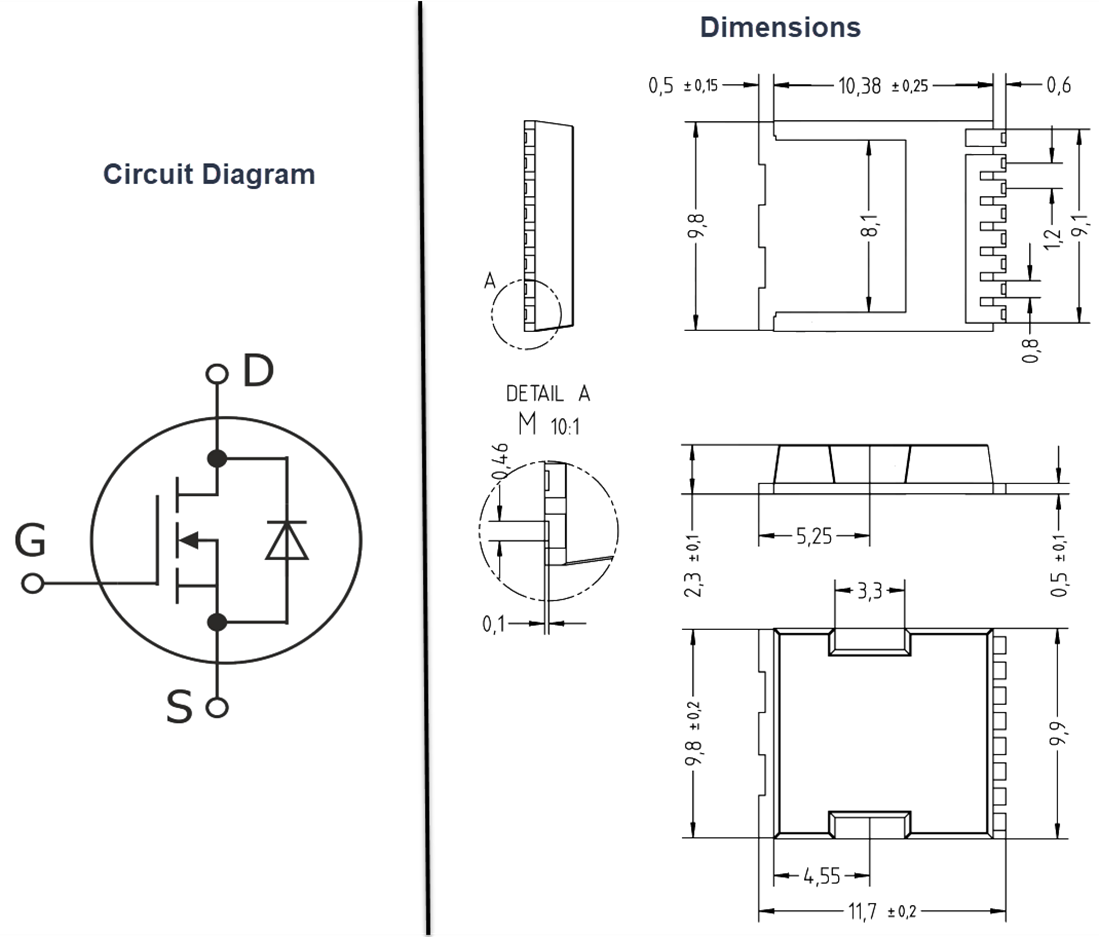

Circuit Diagram & Dimensions

Chart - Diotec Semiconductor DI280N10TL N-Channel Power MOSFET
